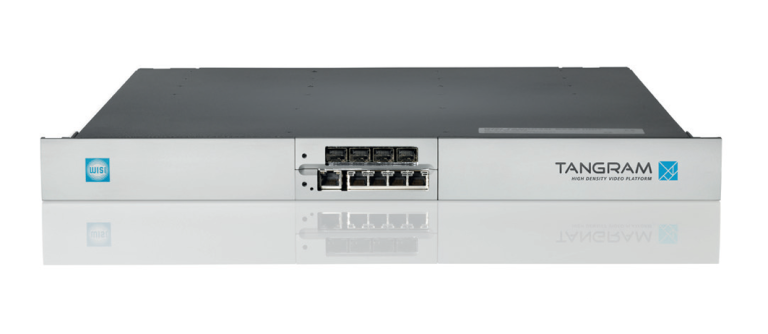

The TANGRAM platform is a very highly customizable and offers advanced DVB stream processing in a small footprint 1RU chassis concept. The TANGRAM chassis can fit up to 6 modules on the backside and 1 module on the front panel. The TANGRAM chassis GT01W0230 comes with one 230 V AC power supply, with an embedded switch on the backplane (GT01W, GT11) and a hot swappable fan tray. The GT01W is a carrier grade chassis and supports a fully redundant concept (1+1, n+1). The WISI TANGRAM video platform is a high-density digital TV headend for contribution of digital TV via IP networks and end-to-end IPTV solutions such as video-on-demand, connected TV and OTT (Over The Top) or Web TV.
At a Glance:
- Fully redundant concept (1+1, n+1)
- Scrambling and remultiplexing
- Small footprint in 1RU chassis
- Carrier grade chassis with optional redundant power supplies
- Combine GT modules for your application
- Hot swappable fan tray
- Modular architecture
- Embedded switch
Switch/Controller Technical Data
- Streaming ports: 4 pcs. (1 Gbps, 100 Mbps, 10 Mbps)
- Control ports: 1 pcs. (100 Mbps)
- Category: Layer 2+
- Multicast IGMP: V2 + V3
- Protocols: RTP, UDP, HTTP, HTTPS, IGMPv2, IGMPv3, SNMPv2, SNMPv3
- SNMP: SNMP versions 2c, and 3 with support for traps
- Web Interface: Browser-based device configuration (HTTP/HTTPS)
- Redundancy: N+1 module redundancy
- Port grouping: No
- VLAN: Yes. Supported VLAN range from VLAN ID 1 to 4095. ID 1 and 16 are reserved for internal management. ID 10 to 15 are reserved for internal streaming.
- IGMP Querier: IGMP v1 or v2. IGMP querier is used to support a Layer 2 multicast domain of snooping switches in the absence of a multicast router
- IGMP Snooping: Yes
- Port monitor: Yes. Data traffic monitor per port receiving and transmitting in kbit/s
Connectors
- Module slots: 6+1 pcs. 6 back sides, 1 front
- RJ45: 5 pcs. (without modules, purely chassis)
Power supply
- Power supply: 1 pcs. GT 55 W 0230
- Optional redundant power supply unit: 1 pcs. GT 55 W 0230
- Power consumption max.: ≤ 40 W (Chassis GT 11; fan unit without modules)
- Operating voltage: AC 230 V (50/60 Hz)
- Operating temperature range: -5°C…+45°C, 23°F…113°F, (ETSI EN 300 019-1-3 Class 3.1)
- Max. humidity, non condensing: 95%
- Electro Magnetic Compatibility (EMC): EN 50083-2
- Safety compliance: CE
- Signalling: Multicolor LEDs (Power on – green, Error – red)
- Operation Mode: Hardware revision 01010100, Software version 3.2.4
- Sales unit: 1 pcs.
- Dimensions (WxHxD) sales unit: 483 x 45 x 473 mm (1HE, 19“-Rack)
- Packaging volume sales unit: 10.3 dm³
- Gross weight sales unit: 8.04 kg
- Shipping unit: 1 pcs.
- Dimensions (WxHxD) shipping unit: 570 x 550 x 100 mm
- Packaging volume shipping package: 31.35 dm³
- Gross weight shipping unit: 8.04 kg
- EAN: 4010056711610
- Article number: 71161
- Customs tariff number: 85176100
