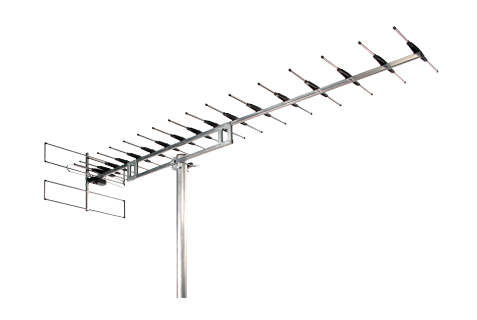

The EB 677 LTE is a UHF antenna for the frequency range 470…690 MHz. The integrated LTE filter convinces with a very high rejection of LTE signals and protects the following distribution network from interfering signals such as 4G/5G. An effective and fast installation is realised by the pre-assembled and pluggable mechanics.
At a Glance:
- Integrated LTE fi lter from 698 MHz
- Very high rejection of LTE signals
- High amplifi cation of DVB-T2 and DVB-T channels
- Robust and durable mechanic of aluminium
- Stable and corrosion-resistant stainless steel screws
- Galvanized steel mast clamp
Channels
- Channels: 21…48 (UHF, with LTE filter)
- Frequency range: UHF 470…690 MHz, 730…862 MHz
- Rejection range: 25 dB (up to 730 MHz)
- Polarization: Horizontal
- Elements: 41 pcs.
- Gain: 15-05-2022 00:00:00 dB
- Forward/backward ratio: >26 dB
- Aperture angle horizontal: 29 °
- Aperture angle vertical: 34 °
- Wind load horizontal: 34 N
- Wind load vertical: 62 N
Connectors
- F-female: 1 pcs.
- Length: 1960 mm
- Sales unit: 1 pcs.
- Dimensions (WxHxD) sales unit: 1100 x 140 x 384 mm
- Packaging volume sales unit: 59.7 dm³
- Gross weight sales unit: 2500 kg
- Shipping unit: 1 pcs.
- Gross weight shipping unit: 02-05-2022 00:00:00 kg
- EAN: 4010056746100
- Article number: 74610
- Customs tariff number: 85291030
