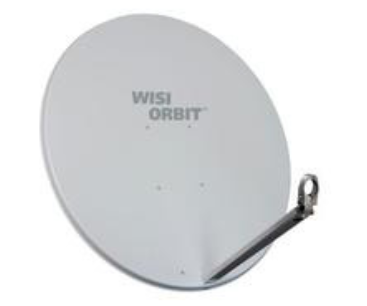

The OA 10 A offset antenna convinces by its easy installation and low weight. The reflector, feed arm and LNB holder consists of light and weather resistant aluminum. The stabile back part is pre-mounted to the reflector and enables an installation in a few steps. For the Installation is an antenna pipe MN 60A or wall holder MN xx available. Multifeed reception can be realized by using the optional multi feed bar OF85 0002 or OF85 0004.
At a Glance:
- Ø 100 cm
- Light grey (RAL 7035)
- Pluggable aluminum feed arm
- 40 mm aluminum feed holder
- Easy and quick installation thanks to the premounted back part
- Corrosion resistant aluminum reflector powdercoated
- Gain: 39.8…40.9 dB
- Aperture angle: <1.8 ° (3 dB)
- Windloading at 72 km/h: 294 N
- Windloading at 144 km/h: 1167 N
- Windloading at 216 km/h: 2628 N
- Reflector material: Aluminium
- Reflector colour: Light grey (RAL 7035)
- Diameter: 100 cm
- Mounting clip: 32…76 mm
- Setting range elevation: 5…90 °
- Weight: 8.8 kg
- Sales unit: 1 pcs.
- Dimensions (WxHxD) sales unit: 1030 x 1130 x 200 mm
- Packaging volume sales unit: 232.78 dm³
- Gross weight sales unit: 9.2 kg
- Shipping unit: 1 pcs.
- Dimensions (WxHxD) shipping unit: 1030 x 1130 x 200 mm
- Packaging volume shipping package: 232.78 dm³
- Gross weight shipping unit: 9.2 kg
- EAN: 4010056756758
- Article number: 75675
- Customs tariff number: 85291030
