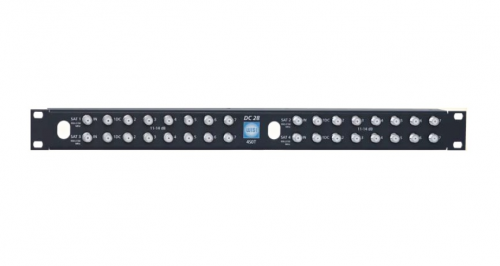

The DC 28 0S4T is a 19″ input distributor for Channel preparation systems for 4×7 terrestrial outputs and a DC bypass for the LNB supply.
At a glance:
- 4x 7 terrestrial outputs
- DC-bypass for the LNB-supply (SAT)
- 19“ input distributor for channel processing systems
Input
- Number SAT: pcs.
- Number TERR: 28 pcs.
- Frequency range SAT: MHz
- Frequency range TERR: 45…862 MHz
Output
- Output return loss: >15 dB
- Through loss: <13 dB (± 1 dB)
- Decoupling: >25 dB
Connectors
- F-socket: 32 pcs.
- Power passing: – V DC
- Power passing: – A
- Dimensions (width x height x depth): 483 x 44 x 51 mm
- Operating temperature range: -20…+55 °C
- Sales unit: 1 pcs.
- Dimensions (WxHxD) sales unit: mm
- Packaging volume sales unit: dm³
- Gross weight sales unit: 1.700 kg
- Shipping unit: pcs.
- Dimensions (WxHxD) shipping unit: mm
- Packaging volume shipping package: 2.2 dm³
- Gross weight shipping unit: 1.7 kg
- EAN: 4010056712532
- Article number: 71253
- Customs tariff number: 85291095
