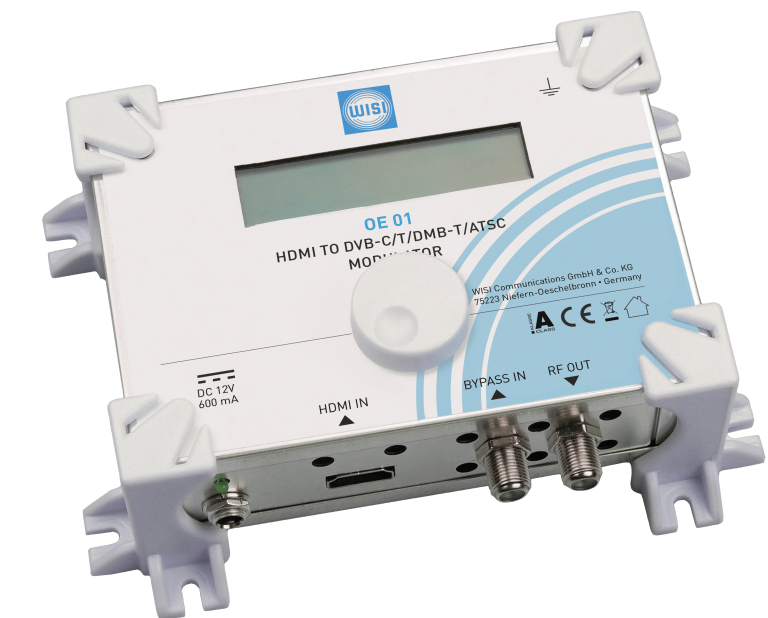

The OE 01 Encoder Modulator enables HD video & audio encoding and digital modulation into an RF signal, compatible for distribution over coaxial cable. The HDMI video signal is MPEG4 compressed and can be received on TV sets with a built-in MPEG4 compatible receiver. On the output side, all common terrestrial- / cable signal modulations are supported (DVB-C/T; ATSC-T/C; DTMB) and can be selected directly on the device without additional hardware or software.
At a Glance:
- 1 HDMI input supporting all resolutions up to 1080p60.
- 1 HF loop-through input for feeding in existing DVB-C/T signals
- MPEG4 Videocompression
- Switchable output modulation (DVB-C, DVB-T, DTMB and ATSC-T/C)
- Freely adjustable output frequency up to 1218 MHz
- User-friendly programming without additional software/hardware
- Adjustable NIT/LCN parameters
- Compact dimensions and easy assembly
HDMI Input
- HDMI number of ports: 1 pcs. (HDMI)
- Input format HDMI: 1080i50/60, 720p50/60, 576p50, 480p60, 576i50, 480i60
- HDCP Support: No
Video Encoding
- Encoding capacity: 1x HD MPEG-4
- Video system: 1x MPEG-4 HD
- Picture size: 1080i50/60, 720p50/60, 576p50, 480p60, 576i50, 480i60
- Bit rate: 2…23 Mbps
- Subtitle DVB Support: No
- Subtitle OP47 Support: No
- Frame rate conversion: No
- Test pattern: No
Audio Encoding
- Audio-system: ISO 11173-3 (MPEG-1 L2)
- Sampling frequency: 44.1, 48 kHz
- Bit rate: 32…320 Kbps
Processing
- PID filtering and remapping: Yes
- Advanced PSI/SI regeneration: Yes
- NIT generation: Yes
Output
- Output level: 59…99 dBµV (adjustable)
Connectors
- F-socket RF-output: 2 pcs.
- HDMI input: 1 pcs. (for type A connector)
- Supply voltage: 12 V DC (600 mA)
- Power consumption: max. ≤6 W
- HDMI status LED: Green
- Operating temperature range: 0…50° °C
- Sales unit: pcs.
- Dimensions (WxHxD) sales unit: mm
- Packaging volume sales unit: dm³
- Gross weight sales unit: kg
- Shipping unit: pcs.
- Dimensions (WxHxD) shipping unit: mm
- Packaging volume shipping package: dm³
- Gross weight shipping unit: kg
- EAN: 4010056761134
- Article number: 76113
- Customs tariff number: 85176200
