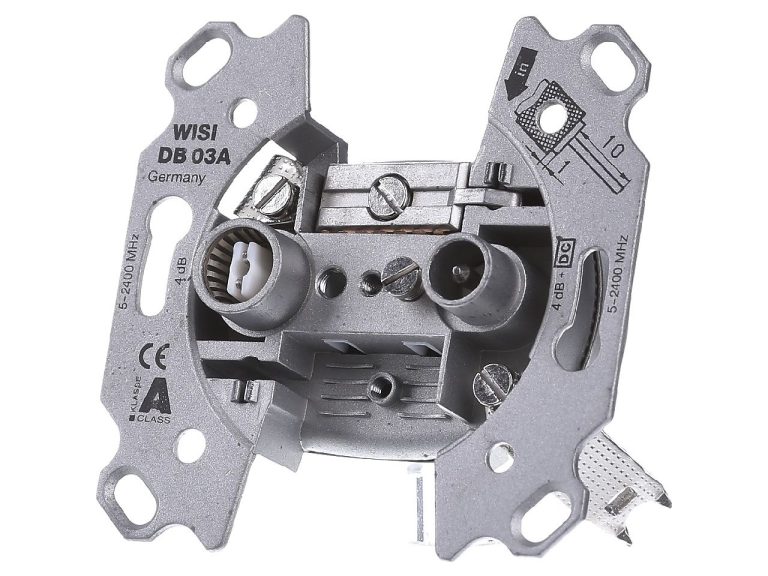

Universal 2-hole jig box with broadband frequency range from 5 . . . 2400 MHz. Thus, the DB 03 antenna socket can be used in BK applications including return channel as well as in SAT distribution systems. Two IEC connections are available for connecting the terminal devices. The high level of decoupling of the subscriber outputs ensures the correct operation of the connected terminals. The class A shielding dimension is achieved.
At a Glance:
- Broadband frequency range 5. . . 2400 MHz
- For bidirectional BK systems or SAT distribution systems
- High decoupling of the subscriber outputs
- High class A shielding dimension, according to EN 50083-2
- DC bypass for multiswitch systems
Inputs
- Frequency range: 5…2400 MHz
Outputs
- Frequency range TV: 5…862 MHz
- Frequency range FM: 87.5…108 MHz
- Frequency range SAT: 950…2150 MHz
- Insertion loss TV: 4.5 dB
- Insertion loss FM: 4.5 dB
- Insertion loss SAT: 5 dB
- Decoupling 5…40 MHz: >20 dB (from 15 MHz)
- Decoupling 40…862 MHz: >20 dB
- Decoupling 862…2400 MHz: >20 dB
- Return loss TV: Cat C
- Return loss Input: Cat B
- Power passing: 24 V DC (remote power 400 mA)
Connectors
- Outer conductor clamp: 7.5 mm
- Inner conductor clamp: 0.8…1.3 mm
- IEC socket: 1 pcs.
- IEC-plug: 1 pcs.
- Screening factor: >85 dB (class A)
- Dimensions (width x height x depth): 70 x 70 x 22 mm
- Installation depth: 35 mm
- Sales unit: 10 pcs.
- Dimensions (WxHxD) sales unit: 212 x 148 x 78 mm
- Packaging volume sales unit: dm³
- Gross weight sales unit: 0.11 kg
- Shipping unit: 100 pcs.
- Dimensions (WxHxD) shipping unit: mm
- Packaging volume shipping package: 0.22 dm³
- Gross weight shipping unit: 0.11 kg
- EAN: 4010056152956
- Article number: 15295
- Customs tariff number: 85291095
