Kit for the conversion of one satellite, DVB-T/T2, DAB and FM into an optical output signal. The OL16 1310 kit contains of the wideband LNB OC 07E and the electrical/optical converter OL 17 1310. Designed for outdoor use, the installation can be done directly at the mast pipe. The optical transmission is done at 1310nm with an optical level of +8 dBm, which enables the distribution of up to 64 termination points. The whole KIT gets powered via the included 20V power supply (EU and UK adapter).
At a Glance:
- Kit includes Wideband LNB and electrical/optical converter
- Transmission of Satellite, terrestrial and radio signals via one optical fiber
- Insertion of DVB-T/T2, DAB and FM at the terrestrial input
- Optical wavelength 1310 nm
- + 8 dBm optical output power
- Wall or pole mount

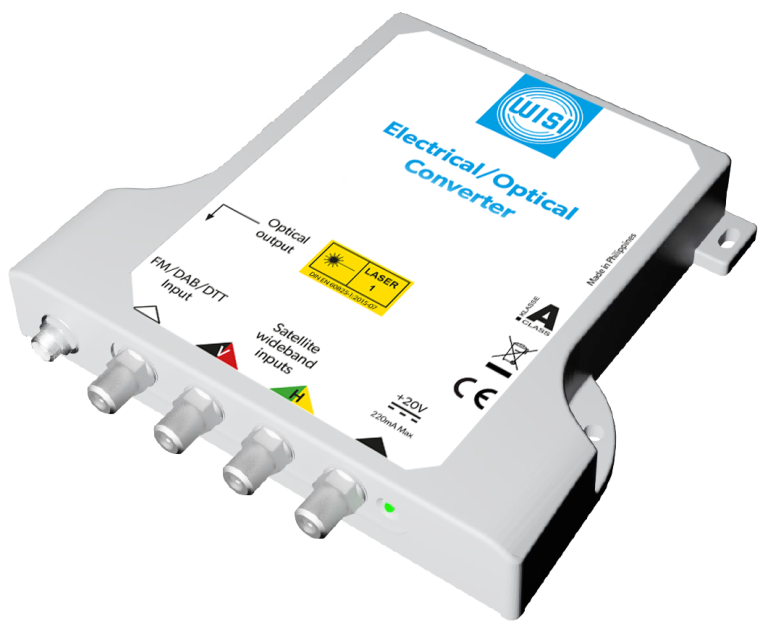

Electrical/Optical Converter
Input
- Frequency range-SAT: 290…2340 MHz
- Impedance: 75 Ω
- Return loss: 20 dB (optical)
- Frequency range DVB-T: 470…694 MHz
- Frequency range DAB: 174…240 MHz
- Frequency range FM: 88…108 MHz
- Level range: 70…85 dBµV (Satellite); 70 dBµV (Terrestrial)
- Ripple: 1 dB
- Gain variation full band:
- FM 88…108 MHz: <1 dB
- DAB 174…240 MHz: <1 dB
- Terr. (DVB-T) 479…694 MHz: <3...5 dB
- SAT: <=3 dB
- Rejection @4G800 frequencies 791…862 MHz (relative): >30 dB
- Connector DVB-T, DAB, FM: 1x F-female
- Connector SAT: 2x F-female
Output
- Wavelength: 1310 nm (±20 nm)
- Optical power: +8 dBm
- Connector: FC/PC
Wideband LNB OC07
Electrical Data
- Input frequency: 10.70…12.75 GHz
- Local Oscillator Frequency: 10.41 GHz
- Output frequency: 290…2340 MHz
- Gain: 50…62 dB
- Noise figure: typ. 0.5 dB
- Gain variation full band: 7 dB (p-p)
- Polarization isolation: typ. -30 dB
- Image rejection: 40 dB
- In-band spurious level: -60 dBm
- L.O. phase noise @ 10 kHz: -75 dBc/Hz
- L.O. temperature drift @ 25°C: ±0.8 MHz
- Output impedance: 75 Ω
Mechanical Data
- Color: Dark Grey, Pantone 432C
- Feed diameter: 40 mm
- With protective enclosure: Yes
Connectors
- RF-Output: 2x F-female
Electrical/Optical Converter
- Input voltage: 20 V DC
- Current consumption: max. 350 mA (without connected devices)
- Maximum upstream current: 500 mA
- Output Voltage Vertical: 12 V
- Output Voltage Horizontal: 18 V
- Operating temperature: -20…+60 °C
- Weight: 0.445 kg
- Dimensions (WxHxD): 160 x 25 x 162 mm
Wideband LNB OC07
- Type: Wideband
- Subscriber: Depending on the multiswitch
- Integrated multi switch: No
- Terrestrial feed: No
- Input voltage: 8…21 V DC
- Current consumption: max. 125 mA
- Operating Temperature: -30…+60 °C
- Weight: 0.445 kg
- Dimensions (B): 60 mm
- Dimensions (H): 60 mm
- Dimensions (T): 1002 mm
- Sales unit: 1 pcs.
- Dimensions (WxHxD) sales unit: 270 x 190 x 60 mm
- Packaging volume sales unit: 3.08 dm³
- Gross weight sales unit: 0.6 kg
- Shipping unit: 1 pcs.
- Dimensions (WxHxD) shipping unit: 270 x 190 x 60 mm
- Packaging volume shipping package: 3.08 dm³
- Gross weight shipping unit: 0.6 kg
- EAN: 4010056764791
- Article number: 76479
- Customs tariff number: 85177000
