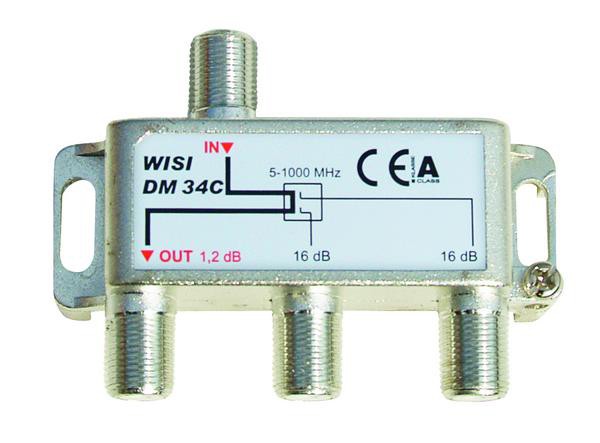

WISI DM 34 C

The DM 34 C is a double splitter for cable TV. Its insertion loss is 1.2 dB and its tab loss is 16 dB. High shielding properties (class A) guarantee an interference-free transmission of the signals in the input and distribution systems. A fast and safe connection is ensured through F-sockets. The splitter is also return path compatible and suitable for internal installation.

At a Glance:

  • Frequency range 5…1000 MHz
  • Screening factor according to Class A
  • High port isolation and return loss
  • Frequency range: 5…1006 MHz
  • Through loss: 0.8…1.2 dB
  • TAP loss: 16 dB
  • Directional attenuation: ≥35/≥28 dB (5…470/470…1000 MHz)
  • Isolation: ≥34 dB
  • Return loss: 18…22 dB

    • Connector

  • Connectors: F-female 4 pcs. (1x input, 1x run through, 2x branch)
    • Screening factor: >85 dB (class A)
    • DC Bypass IN/OUT: 1A/30V No
    • Dimensions (width x height x depth): 78 x 50 x 27 mm
    • Sales unit: 10 pcs.
    • Dimensions (WxHxD) sales unit: 370 x 320 x 170 mm
    • Packaging volume sales unit: dm³
    • Gross weight sales unit: 0.062 kg
    • Shipping unit: 100 pcs.
    • Dimensions (WxHxD) shipping unit: mm
    • Packaging volume shipping package: dm³
    • Gross weight shipping unit: 0.062 kg
    • EAN: 4010056703059
    • Article number: 70305
    • Customs tariff number: 85437090
