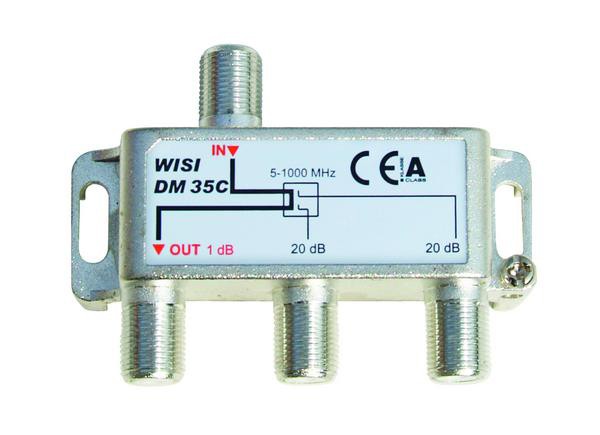

The DM 35 C is a double splitter for cable TV. Its insertion loss is 1.2 dB and its tab loss is 20 dB. High shielding properties (class A) guarantee an interference-free transmission of the signals in the input and distribution systems. A fast and safe connection is ensured through F-sockets. The splitter is also return path compatible and suitable for internal installation.
At a Glance:
- Frequency range 5…1000 MHz
- Screening factor according to Class A
- High port isolation and return loss
- Frequency range: 5…1006 MHz
- Through loss: 0.5…1.0 dB
- TAP loss: 20 dB
- Directional attenuation: ≥45/≥32 dB (5…470/470…1000 MHz)
- Isolation: ≥34 dB
- Return loss: 18…22 dB
Connector
- Connectors: F-female 4 pcs. (1x input, 1x run through, 2x branch)
<
- Screening factor: >85 dB (class A)
- DC Bypass IN/OUT: 1A/30V No
- Dimensions (width x height x depth): 78 x 50 x 27 mm
- Sales unit: 10 pcs.
- Dimensions (WxHxD) sales unit: 370 x 320 x 200 mm
- Packaging volume sales unit: dm³
- Gross weight sales unit: 0.06 kg
- Shipping unit: 100 pcs.
- Dimensions (WxHxD) shipping unit: mm
- Packaging volume shipping package: dm³
- Gross weight shipping unit: 0.06 kg
- EAN: 4010056703066
- Article number: 70306
- Customs tariff number: 85437090
