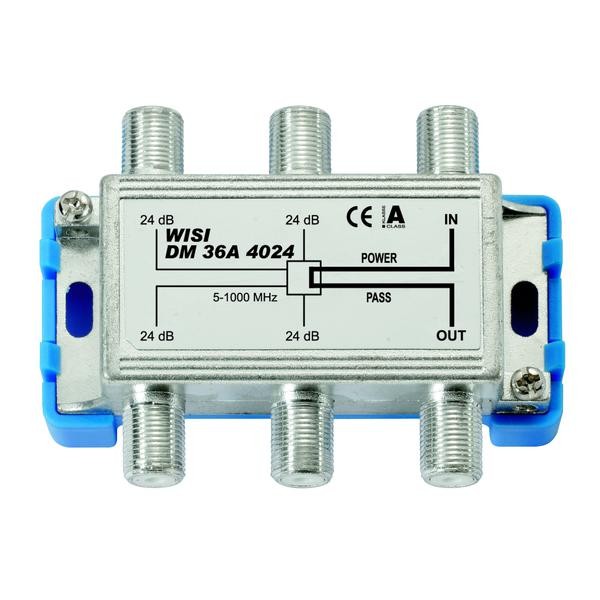

Four-way tap, 24 dB
- Frequency range: 5…1006 MHz
- Through loss: 0.8 +/- 0.2 dB
- Side loss: 24 +/- 0.5 dB
- Directional attenuation: > 40 / > 33 dB (5…470/470…1000 MHz)
- Decoupling: > 33 / > 28 dB (5…470/470…1000 MHz)
- Return loss: > 23 dB
Connector
- Connectors: F-socket 6 pcs. (1x input, 1x run through, 4x branch)
- Screening factor (EMC): >85 dB (class A)
- DC Bypass IN/OUT: 1A/30V No
- Dimensions (width x height x depth): 78 x 58 x 28 mm
- Sales unit: 10 pcs.
- Dimensions (WxHxD) sales unit: 260 x 155 x 200 mm
- Packaging volume sales unit: dm³
- Gross weight sales unit: 0.092 kg
- Shipping unit: 25 pcs.
- Dimensions (WxHxD) shipping unit: mm
- Packaging volume shipping package: 8.1 dm³
- Gross weight shipping unit: 0.092 kg
- EAN: 4010056165925
- Article number: 16592
- Customs tariff number: 85291095
