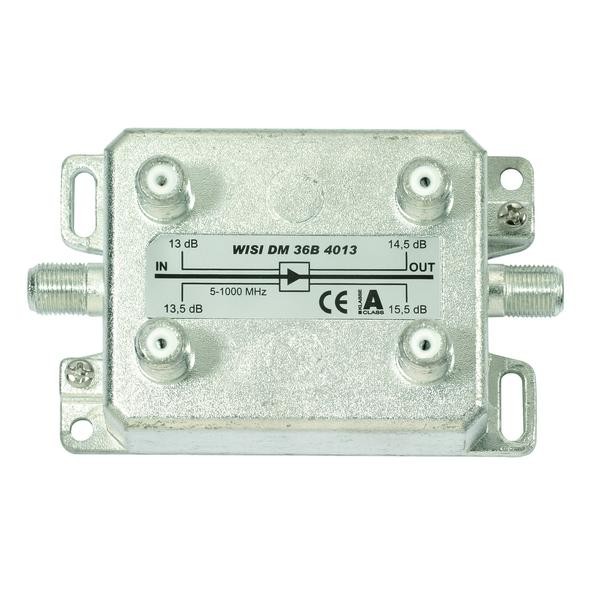

The DM 36 B 4013 is an asymmetrical 4-way splitter for cable TV. Its insertion loss is 4 dB and its tab loss is 13…15.5 dB. High shielding properties (class A) guarantee an interference-free transmission of the signals in the input and distribution systems. A fast and safe connection is ensured through F-sockets.
At a Glance:
- Frequency range 5…1000 MHz
- Screening factor according to Class A
- High port isolation and return loss
- Frequency range: 5…1006 MHz
- Through loss: 4 dB
- TAP loss: 13…15.5 dB
- Directional attenuation: 30…26/24 dB (5…470/470…1000 MHz)
- Isolation: 40…36/32 dB (5…470/470…1000 MHz)
- Return loss: 18…22 dB
Connector
- Connectors: F-female 6 pcs. (1x input, 1x run through, 4x branch)
- Screening factor: >85 dB (class A)
- DC Bypass IN/OUT: 1A/30V Yes
- Dimensions (width x height x depth): 92 x 54 x 42 mm
- Sales unit: 10 pcs.
- Dimensions (WxHxD) sales unit: 260 x 155 x 200 mm
- Packaging volume sales unit: dm³
- Gross weight sales unit: 0.092 kg
- Shipping unit: 25 pcs.
- Dimensions (WxHxD) shipping unit: mm
- Packaging volume shipping package: 8.1 dm³
- Gross weight shipping unit: 0.183 kg
- EAN: 4010056165932
- Article number: 16593
- Customs tariff number: 85437090
