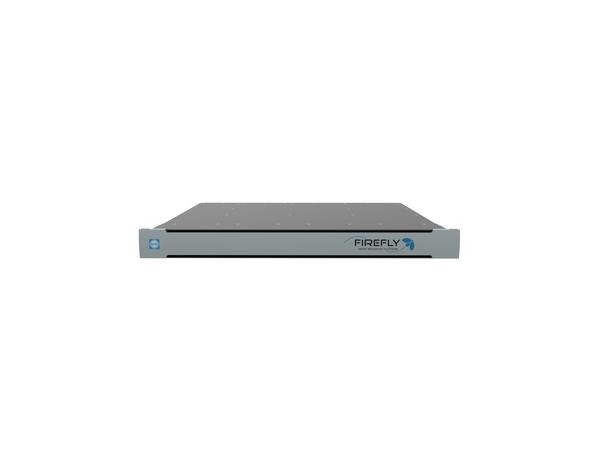

FIREFLY HLS RECEIVER is a Smart Broadcast Platform. The Firefly HLS Receiver has been developed specifically to provide an alternative content contribution method. This smart receiver can convert HLS streams to digital formats, and provides a cost-effective solution for operators who wish to distribute linear TV channels to each sub headend. The FIREFLY HLS receiver model GBA02 allows you to receive up to 2 HLS streams, processing, conversion to IP Multicast/Unicast and feeding your digital or analog network.
At a Glance:
- Professional HLS integrated receiver and decoder
- Single or dual HLS stream reception, up to 2x HD sources with 1 profile each or up to 2x SD sources with 1 profile each
- Conversion of HLS to IP Multicast/Unicast
- Intuitive graphical user interface
- Output interface: IP or ASI
- Deployment Scenarios: satellite distribution replacement, hospitality and cable operators, refugees TV, universities
- HLS Streaming Input
- HLS IRD: Up to 2 HLS streams
- HLS SD bitrate: Up to 4 Mbps per stream
- HLS HD bitrate: Up to 8 Mbps per stream
- HLS Adaptive Bitrate (ABR): No (manual selection)
Streaming-In-/Output
- IP-Inputs: 32 pcs.
- IP-Outputs: 32 pcs.
- IP-Compliance: ISO/IEC 13818
- IP-Input bitrate: Max. 425 Mbit/s per IPTS, Max. 850 Mbit/s total
- IP-Output bitrate: Max. 425 Mbit/s per IPTS, Max. 850 Mbit/s total
- IP-Input protocol: UDP/RTP/RTP+FEC Unicast and Multicast, IGMP v2 and v3
- IP-Output protocol: UDP/RTP/RTP+FEC Unicast and Multicast, IGMP v2 and v3
- IP-TS-Input format: SPTS CBR/VBR, MPTS CBR
- IP-TS-Output format: SPTS CBR/VBR, MPTS CBR
- IP-FEC Inputs: 32 pcs.
- IP-FEC Outputs: 32 pcs.
- IP-FEC compliance: SMPTE 2022-1, SMPTE 2022-2
- IP-Packet format: MPEG over UDP/IP and RTP/IP
- IP-Packet size: 188 Byte
- IP-PCR restamping: Yes
- IP-Dejittering: Yes, per default 100ms, individual adjustable
ASI Input/Output
- ASI-Input/Output: 2 pcs. (max.)
- ASI-Impedance: 75 Ω
- ASI-Frequency range: <270 MHz
- ASI-Return loss: >17 dB (27…270 MHz)
- ASI-Compliance: EN 50083-9:2002
- ASI-Packet size Input/Output: 188, 204/188 Byte
- ASI-PCR restamping: Yes
- ASI-Input/Output max. payload bit rate: Typ. 200 Mbit/s
Processing
- Service remultiplexing: Yes
- PID filtering and remapping: Yes
- PCR correction and de-jitter: Yes
- Advanced PSI/SI regeneration: Yes
- Processing bitrate: Max. 850 Mbps total
- Number of PIDs: Max. 2000 PIDs total
- Compliance: ETSI EN 300 468
Connectors
- RJ45: 3 pcs. (1x Management, 2x Streaming)
- BNC-socket: 2 pcs. (Individually configurable for in/out via UI)
- Power consumption: 20 W
- Power supply: Redundant power supply, internal, 90…260 V, 47…63 Hz
- Operating temperature range: -5°C…+45°C, 23°F…113°F (ETSI EN 300 019-1-3 Class 3.1)
- Max. humidity, non condensing: 95 %
- Electro Magnetic Compatibility (EMC): EN 50083-2
- Safety compliance: CE
- Signalling: Multicolor LEDs (Power on – green, Error – red)
- Hardware revision: 1000
- Software version: –
- Sales unit: 1 pcs.
- Dimensions (WxHxD) sales unit: 483 x 45 x 410 mm (1HE, 19“-Rack)
- Packaging volume sales unit: dm³
- Gross weight sales unit: kg
- Shipping unit: 1 pcs.
- Dimensions (WxHxD) shipping unit: 570 x 100 x 550 mm
- Packaging volume shipping package: 31.35 dm³
