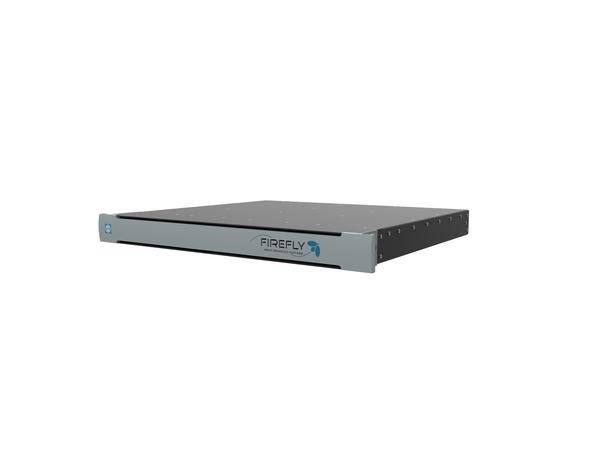

FIREFLY HLS Receiver and Decoder is a Smart Broadcast Platform. The FIREFLY HLS Receiver has been developed specifically to provide an alternative content contribution method. This smart receiver and decoder can convert HLS streams to baseband-SDI signal, and provides a cost-effective solution for operators who wish to distribute linear TV channels to each sub headend. The FIREFLY HLS receiver and decoder model GBA02S2 allows you to receive up to 2 HLS streams, processing, decoding of up to 2 SD-SDI outputs or up to 1 HD-SDI output.
At a Glance:
- Professional integrated HLS receiver and decoder
- Single or dual HLS stream reception, up to 2 HD sources with 1 profile each or up to 2 SD sources with 1 profile each
- Integrated decoder. Up to 2 SD-SDI outputs or 1 HD-SD output
- Conversion of HLS to IP Multicast/Unicast streams
- Intuitive graphical user interface
- Output interface: IP or ASI
- Deployment Scenarios: satellite distribution replacement, hospitality and cable operators, refugees TV, universities
- HLS Streaming Input
- HLS IRD: Up to 2 HLS streams
- HLS SD bitrate: Up to 4 Mbps per stream
- HLS HD bitrate: Up to 8 Mbps per stream
- HLS Adaptive Bitrate (ABR): No (optional)
Streaming-In-/Output
- IP-Inputs: 32 pcs.
- IP-Outputs: 32 pcs.
- IP-Compliance: ISO/IEC 13818
- IP-Input bitrate: Max. 425 Mbit/s per IPTS, Max. 850 Mbit/s total
- IP-Output bitrate: Max. 425 Mbit/s per IPTS, Max. 850 Mbit/s total
- IP-Input protocol: UDP/RTP/RTP+FEC Unicast and Multicast, IGMP v2 and v3
- IP-Output protocol: UDP/RTP/RTP+FEC Unicast and Multicast, IGMP v2 and v3
- IP-TS-Input format: SPTS CBR/VBR, MPTS CBR
- IP-TS-Output format: SPTS CBR/VBR, MPTS CBR
- IP-FEC Inputs: 32 pcs.
- IP-FEC Outputs: 32 pcs.
- IP-FEC compliance: SMPTE 2022-1, SMPTE 2022-2
- IP-Packet format: MPEG over UDP/IP and RTP/IP
- IP-Packet size: 188 Byte
- IP-PCR restamping: Yes
- IP-Dejittering: Yes, per default 100ms, individual adjustable
ASI Input/Output
- ASI-Input/Output: 2 pcs. (max.)
- ASI-Impedance: 75 Ω
- ASI-Frequency range: <270 MHz
- ASI-Return loss: >17 dB (27…270 MHz)
- ASI-Compliance: EN 50083-9:2002
- ASI-Packet size Input/Output: 188, 204/188 Byte
- ASI-PCR restamping: Yes
- ASI-Input/Output max. payload bit rate: Typ. 200 Mbit/s
HD-SDI Output
- Number of outputs: 1
- Video formats: 1920x1080i@50/60, 1280x720p@50/60
- Stereo mode: Stereo, Dual mono, Dual left/right
- OSD Test pattern: Yes
- Audio sampling frequency: 32/44.1/48 kHz
- Compliance SDI-HD: SMPTE 292M, SMPTE 299M, SMPTE 291
- Connector: BNC connector 3
SD-SDI Output
- Number of outputs: 2 pcs.
- Video formats: 720x576i@50, 720x480i@59.94
- Connector: BNC connector 3 and/or 4
MPEG Decoder – Video/Audio
- Video decoder: MPEG-2 SD (MP@ML) 1.5..15 MBit/s, MPEG-4 SD (MP@ML) Level 4.1, MPEG-4 HD (MP@HL) Level 4.1
- Audio decoder: ISO 13818-3 MPEG-1 (L1/L2), MPEG-2 (L1/L2), Dolby AC-3 (Dolby and the double-D symbol are trademarks of Dolby Laboratories. Manufactured under license from Dolby Laboratories)
- Video downscaling: HD to SD for 1 Service
- Video-Scaling: Auto, Ignore, Letterbox, Pan and scan, Combined, Forced
- Subtitle: DVB and Teletext (EBU) EN 300 743, SCTE 27
- Audio format: Mono/Stereo/Dual NICAM mono/BTSC/SAP/A2 Stereo/A2 Dual mono, AC-3
- Compliance SDI-SD: ISO 13818-2 (MPEG-2/H.262); ISO 14496-10 (MPEG-4/H.264/AVC)
Processing
- Service remultiplexing: Yes
- PID filtering and remapping: Yes
- PCR correction and de-jitter: Yes
- Advanced PSI/SI regeneration: Yes
- Processing bitrate: Max. 850 Mbps total
- Number of PIDs: Max. 2000 PIDs total
- Compliance: ETSI EN 300 468
Connectors
- RJ45: 3 pcs. (1x Management, 2x Streaming)
- BNC-socket: 4 pcs.
- Power consumption: 20 W
- Power supply: Redundant power supply, internal, 90…260 V, 47…63 Hz
- Operating temperature range: -5°C…+45°C, 23°F…113°F (ETSI EN 300 019-1-3 Class 3.1)
- Max. humidity, non condensing: 95 %
- Electro Magnetic Compatibility (EMC): EN 50083-2
- Safety compliance: CE
- Signalling: Multicolor LEDs (Power on – green, Error – red)
- Hardware revision: 1000
- Software version: –
- Sales unit: 1 pcs.
- Dimensions (WxHxD) sales unit: 483 x 45 x 410 mm (1HE, 19“-Rack)
- Shipping unit: 1 pcs.
- Dimensions (WxHxD) shipping unit: 570 x 100 x 550 mm
- Packaging volume shipping package: 31.35 dm³
- EAN: 4010056756840
- Article number: 75684
