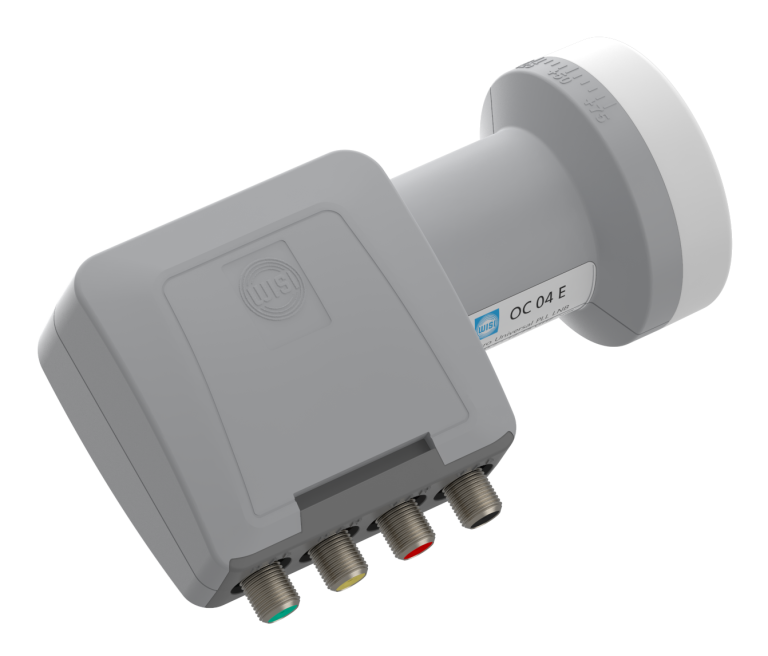

The OC 04 E is a universal feeding system with 4 outputs of the unique satellite polarizations. The range of application is therefore the installation in front of multiswitches, Unicable switches or headend systems. The reception range of this feeding system covers all common satellite signals (DVB-S/S2/S2X) in the KU-band, such as Astra 19.2 East or Hotbird at 13° East. A low noise figure, as well as a perfect linearity at a high output level, ensures a stable signal at the STBs. The UV-resistant housing protects the electronic against weathering and the extendible protection cover protects the connected coaxial cable against water entering through the F-connectors.
At a Glance:
- For multiswitch installations or headend systems
- Colour-coded outputs facilitates the allocation of the polarizations
- UV-resistant housing in light grey
- Extendible weather protection
- Reception of DVB-S/S2/S2X
- High amplification of the satellite signals
- Highest linearity over the entire frequency spectrum
- Low power consumption
- 4G/LTE safe
- Very low noise figure
- Input frequency: 10.70…12.75 GHz
- Oscillator frequency low band: 9.75 GHz
- Oscillator frequency high band: 10.6 GHz
- Switching voltage vertical: 11…14 V DC
- Switching voltage horizontal: 16…20 V DC
- Output frequency: 950…2150 MHz
- Gain: >55 dB
- Ripple: ±4 dB
- Noise figure: typ. 0.3 dB
- Polarization isolation: >22 dB
- Image rejection: >40 dB
- In band spurious level max.: -60 dBm
- L.O. phase noise @ 10 kHz max.: -80 dBc/Hz
- L.O. Frequency accuracy @ 25 °C max.: ±500 kHz
- L.O. temperature drift @ 25°C max.: ±1.0 MHz
- Output impedance: 75 Ω
Mechanical Data
- Color: Light grey (RAL 7035)
- Feed diameter: 40 mm
- With protective enclosure: Yes
Connectors
- RF-Output: 4x F-female
- Type: Quattro
- Subscriber: pcs. Depending on the multiswitch
- Integrated multi switch: Yes
- Terrestrial feed: No
- Input voltage: 11…20 V DC
- Current consumption max.: 240 mA
- Operating Temperature: -30…+60 °C
- Weight: 0.202 kg
- Dimensions (B): 138 mm
- Dimensions (H): 85.5 mm
- Dimensions (T): 61 mm
- Sales unit: 1 pcs.
- Dimensions (WxHxD) sales unit: 116 x 97 x 55 mm
- Packaging volume sales unit: dm³
- Gross weight sales unit: 0.148 kg
- Shipping unit: 10 pcs.
- Dimensions (WxHxD) shipping unit: mm
- Packaging volume shipping package: – dm³
- Gross weight shipping unit: 0.132 kg
- EAN: 4010056761707
- Article number: 76170
- Customs tariff number: 85437090
