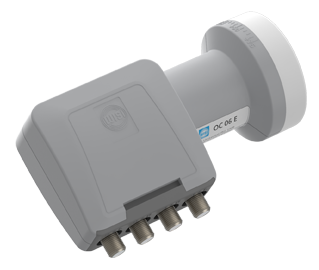

The OC 06 E is a universal feeding system for 4 subscribers. The range of application is therefore the installation in private apartments or houses, which should operate without an additional multiswitch. The reception range of this feeding system covers all common satellite signals (DVB-S/S2/S2X) in the KU-band, such as Astra 19.2 East or Hotbird at 13° East. A low noise figure, as well as a perfect linearity at a high output level, ensures a stable signal at the receiver. The UV-resistant housing protects the electronic against weathering and the extendible protection cover protects the connected coaxial cable against water entering through the F-connectors.
At a Glance:
- For 4 set-top boxes
- UV-resistant housing in light grey
- Extendible weather protection
- Reception of DVB-S/S2/S2X
- High amplification of the satellite signals
- Highest linearity over the entire frequency spectrum
- Low power consumption
- 4G/LTE safe
- Very low noise figure
- Compatible with HDTV, 3D, 4K (UHD)
- Input frequency: 10.70…12.75 GHz
- Oscillator frequency low band: 9.75 GHz
- Oscillator frequency high band: 10.6 GHz
- Switching voltage vertical: 11…14 V DC
- Switching voltage horizontal: 16…20 V DC
- Output frequency: 950…2150 MHz
- Gain: >55 dB
- Ripple: ±4 dB
- Noise figure: typ. 0.3 dB
- Polarization isolation: >22 dB
- Image rejection: >40 dB
- In band spurious level max.: -60 dBm
- L.O. phase noise @ 10 kHz max.: -80 dBc/Hz
- L.O. Frequency accuracy @ 25 °C max.: ±500 kHz
- L.O. temperature drift @ 25°C max.: ±1.0 MHz
- Output impedance: 75 Ω
Mechanical Data
- Color: Light grey (RAL 7035)
- Feed diameter: 40 mm
- With protective enclosure: Yes
Connectors
- RF-Output: 4x F-female
- Type: Quad
- Subscriber: 4 pcs.
- Integrated multi switch: No
- Terrestrial feed: No
- Input voltage: 11…20 V DC
- Current consumption max.: 120 mA
- Operating Temperature: -30…+60 °C
- Weight: 0.206 kg
- Dimensions (B): 138 mm
- Dimensions (H): 85.5 mm
- Dimensions (T): 61 mm
- Sales unit: 1 pcs.
- Dimensions (WxHxD) sales unit: 116 x 97 x 55 mm
- Packaging volume sales unit: dm³
- Gross weight sales unit: 0.148 kg
- Shipping unit: 10 pcs.
- Dimensions (WxHxD) shipping unit: mm
- Packaging volume shipping package: – dm³
- Gross weight shipping unit: 0.132 kg
- EAN: 4010056761714
- Article number: 76171
- Customs tariff number: 85437090
