Amplifier

WISI VX 2015

Amplifier

The VX 2015 is a location feeding in-house amplifier with a frequency range up to 1.2 GHz. It has an active output and a measuring socket on the input and output. Diplex filter and return path amplifier are grouped together on a module (VX201-xxx) and available in the versions 65 MHz, 85 MHz and 204 MHz. All settings are done without interruption with Q-step switch or jumper. In addition, a high pass filter XE-xx can be plugged in the return path to influence the ingress influences.

Amplifier

WISI VX 1014

Amplifier

Programmable broadband distribution amplifier for use in coaxial networks, delivery without return path modules. Settings via handset OH41. Second output configurable by splitter module XM.

Amplifier

WISI VX 45 0P

Amplifier

Home-Line distribution amplifier in zinc diecast housing, flap cover for easy handling, attenuators and equaliser configurable via PADs and jumper. Measuring points on the input and output. Return path amplifier on the main board, low power input and high power output. Classification: KDG 1TS140 C (4.3)

Amplifier

WISI VX 43 0C 065

Amplifier

The VX 43 0C 065 is a locally powered house connection amplifier with a frequency range up to 1. 2 GHz, it has an active output and an external measuring socket at the input as well as at the output. Diplex filter and return path amplifier are combined on one module (VX 40 0C xxx) and available in 65 MHz and 204 MHz versions. All settings are made via jumpers. Vodafone Germany Category D (1. 2).

Amplifier

WISI VX 43 2D

Amplifier

Broadband in-house amplifier for use in coaxial networks recommended for 4-6 households, classification 1TS 140 C 1.3, authorisation of network operator.

Amplifier

WISI VX 88 0P

Amplifier

MIDI-LINE distribution amplifier in zinc diecast housing, flap cover for easy handling, attenuators and equalizer configurable via PADs and jumper. Measuring points on the input and output. Return path amplifier on the main board, low power input and high power output. Classification: VX 88 OP: KDG 1TS140 B (3.2)

Satellite

WISI OC 06 E

Satellite

The OC 06 E is a universal feeding system for 4 subscribers. The range of application is therefore the installation in private apartments or houses, which should operate without an additional multiswitch. The reception range of this feeding system covers all common satellite signals (DVB-S/S2/S2X) in the KU-band, such as Astra 19.2 East or Hotbird at 13° East. A low noise figure, as well as a perfect linearity at a high output level, ensures a stable signal at the receiver. The UV-resistant housing protects the electronic against weathering and the extendible protection cover protects the connected coaxial cable against water entering through the F-connectors.

Satellite

WISI OC 04 E

Satellite

The OC 04 E is a universal feeding system with 4 outputs of the unique satellite polarizations. The range of application is therefore the installation in front of multiswitches, Unicable switches or headend systems. The reception range of this feeding system covers all common satellite signals (DVB-S/S2/S2X) in the KU-band, such as Astra 19.2 East or Hotbird at 13° East. A low noise figure, as well as a perfect linearity at a high output level, ensures a stable signal at the STBs. The UV-resistant housing protects the electronic against weathering and the extendible protection cover protects the connected coaxial cable against water entering through the F-connectors.

Satellite

WISI OC 02 E

Satellite

The OC 02 E is a universal feeding system for 2 subscribers. The range of application is therefore the installation in private apartments or houses, which should operate without an additional multiswitch. The reception range of this feeding system covers all common satellite signals (DVB-S/S2/S2X) in the KU-band, such as Astra 19.2 East or Hotbird at 13° East. A low noise figure, as well as a perfect linearity at a high output level, ensures a stable signal at the receiver. The UV-resistant housing protects the electronic against weathering and the extendible protection cover protects the connected coaxial cable against water entering through the F-connectors.

Satellite

WISI OC 01 E

Satellite

The OC 01 E is a universal feeding system for 1 subscriber. The range of application is therefore the installation in private apartments or houses, which should operate without an additional multiswitch. The reception range of this feeding system covers all common satellite signals (DVB-S/S2/S2X) in the KU-band, such as Astra 19.2 East or Hotbird at 13° East. A low noise figure, as well as a perfect linearity at a high output level, ensures a stable signal at the receiver. The UV-resistant housing protects the electronic against weathering and the extendible protection cover protects the connected coaxial cable against water entering through the F-connectors.

Satellite

WISI OA 100 I

Satellite

Aluminum offset antenna, red-brown. Mast clamp hot-dip galvanized, feed holder 40mm. Mounting to antenna mast or wall bracket.

Firefly

WISI FIREFLY GBA02S2

Firefly

FIREFLY HLS Receiver and Decoder is a Smart Broadcast Platform. The FIREFLY HLS Receiver has been developed specifically to provide an alternative content contribution method. This smart receiver and decoder can convert HLS streams to baseband-SDI signal, and provides a cost-effective solution for operators who wish to distribute linear TV channels to each sub headend. The FIREFLY HLS receiver and decoder model GBA02S2 allows you to receive up to 2 HLS streams, processing, decoding of up to 2 SD-SDI outputs or up to 1 HD-SDI output.

Firefly

WISI FIREFLY GBA02

Firefly

FIREFLY HLS RECEIVER is a Smart Broadcast Platform. The Firefly HLS Receiver has been developed specifically to provide an alternative content contribution method. This smart receiver can convert HLS streams to digital formats, and provides a cost-effective solution for operators who wish to distribute linear TV channels to each sub headend. The FIREFLY HLS receiver model GBA02 allows you to receive up to 2 HLS streams, processing, conversion to IP Multicast/Unicast and feeding your digital or analog network.

Splitter

WISI DM 36 B 4013

Splitter

The DM 36 B 4013 is an asymmetrical 4-way splitter for cable TV. Its insertion loss is 4 dB and its tab loss is 13…15.5 dB. High shielding properties (class A) guarantee an interference-free transmission of the signals in the input and distribution systems. A fast and safe connection is ensured through F-sockets.

Splitter

WISI DM 35 C

Splitter

The DM 35 C is a double splitter for cable TV. Its insertion loss is 1.2 dB and its tab loss is 20 dB. High shielding properties (class A) guarantee an interference-free transmission of the signals in the input and distribution systems. A fast and safe connection is ensured through F-sockets. The splitter is also return path compatible and suitable for internal installation.

Splitter

WISI DM 34 C

Splitter

The DM 34 C is a double splitter for cable TV. Its insertion loss is 1.2 dB and its tab loss is 16 dB. High shielding properties (class A) guarantee an interference-free transmission of the signals in the input and distribution systems. A fast and safe connection is ensured through F-sockets. The splitter is also return path compatible and suitable for internal installation.

Splitter

WISI DM 21 C

Splitter

The DM 21 C is a simple splitter for cable TV. Its insertion loss is 2 dB and its tab loss is 8 dB. High shielding properties (class A) guarantee an interference-free transmission of the signals in the input and distribution systems. A fast and safe connection is ensured through F-sockets. The DM 21 C is also return path compatible and suitable for internal installation.

Fiber Optic

WISI OL 16 1310

Fiber Optic

Kit for the conversion of one satellite, DVB-T/T2, DAB and FM into an optical output signal. The OL16 1310 kit contains of the wideband LNB OC 07E and the electrical/optical converter OL 17 1310. Designed for outdoor use, the installation can be done directly at the mast pipe. The optical transmission is done at 1310nm with an optical level of +8 dBm, which enables the distribution of up to 64 termination points. The whole KIT gets powered via the included 20V power supply (EU and UK adapter).

Outlet

WISI DV 23

Outlet

The DV 23 is an attachable terminating resistor of 75 Ohm for the installation of antenna doses.

Outlet

WISI DV 27

Outlet

The DV 27 is a clamp on 75 Ohm terminating resistor for mounting on antenna doses (DB 64 UNICABLE).

Outlet

WISI DW 46

Outlet

The DW 46 is a 3-hole cover plate for DD cans with WICLIC-socket. Dimensions (WxH) 75 x 75mm.

Outlet

WISI DB 53D

Outlet

The DB 53 D is a 3-ports antenna wall socket for separate connections of radio, TV and satellite receivers. DC bypass at the SAT connector allows feeding power supply and switching commands. The housing offers high stability and ensures high shielding properties (Class A). Low mounting space is required thanks to the flat design of the outlet. The extended F-connector makes sure that patch cable could be easily screwed on.

Outlet

WISI DB 64

Outlet

The DB 64 is a 3-hole Unicable loop-through sockets for satellite receiving equipment to separately connect radio, TV receivers and additional SAT receivers. Inside the SAT connection a DC bypass is integrated which allows the passage of the required switching voltages. The housing has a very high stability despite a very flat construction. By F and IEC sockets and IEC connector, a faster and more reliable connection is ensured.

Outlet

WISI DB 54

Outlet

The DB 54 is a special 4 hole trick box for TWIN receivers, which enables 2 lines to operate independently. The SAT 2 input is suitable for CATV as well. In both SAT connections, a DC bypass is integrated to enable the transmission of the required switching voltage. The housing offers high stability and ensures high shielding properties (class A). Thanks to the flat design it is space-saving, and with the IEC-socket/plug, 2x F-socket, a safe connection is guaranteed.

Outlet

WISI DB 53

Outlet

The DB 53 is a 3 hole trick box for separate connections for radio, TV receivers, and additional SAT receivers. At the SAT connection, a DC bypass is integrated, which allows for the transmission of all needed switching voltage. The housing offers high stability and ensures high shielding properties (class A). Thanks to the flat design it is space-saving, and with the IECsocket/plug, F-socket, a safe connection is guaranteed.

Outlet

WISI DB 07

Outlet

Universal 2-hole through-hole socket with broadband frequency range from 5. . . 2400 MHz. Thus the DB 07 antenna socket can be used both in BK applications including return channel and with SAT single cable solutions without switching voltages. Two IEC connections are available for connecting the terminal devices. The high level of decoupling of the subscriber outputs ensures the correct operation of the connected terminals. The class A shielding dimension is achieved.

Outlet

WISI DB 05

Outlet

Universal 2-hole through-hole socket with broadband frequency range from 5. . . 2400 MHz. Thus the DB 05 antenna socket can be used both in BK applications including return channel and with SAT single cable solutions without switching voltages. Two IEC connections are available for connecting the terminal devices. The high level of decoupling of the subscriber outputs ensures the correct operation of the connected terminals. The class A shielding dimension is achieved.

Outlet

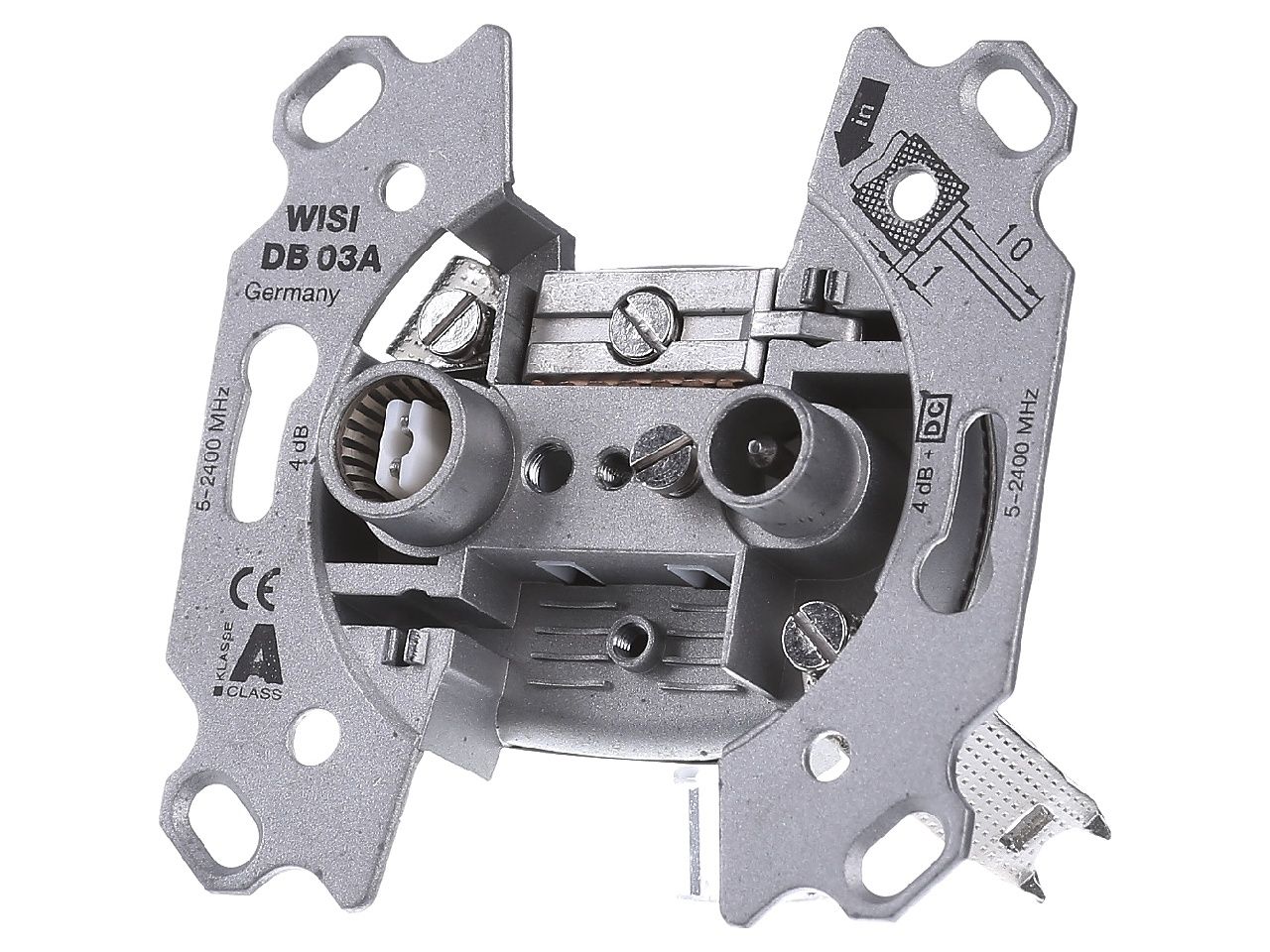

WISI DB 03 A

Outlet

Universal 2-hole jig box with broadband frequency range from 5. . . 2400 MHz. Thus, the DB 03 antenna socket can be used in BK applications including return channel as well as in SAT distribution systems. Two IEC connections are available for connecting the terminal devices. The high level of decoupling of the subscriber outputs ensures the correct operation of the connected terminals. The class A shielding dimension is achieved.

Amplifier

WISI VX 81/82/86/87

Amplifier

The VS 35 PRO HP is a programmable terrestrial filter with an integrated amplifier. Four antennas (1x FM, 1x DAB/VHF, 2x UHF) can be connected via four F-connectors. 15 freely selectable channels can be programmed a number that may be increased up to 50 by extending the channel band width. The high selectivity ensures a high signal quality of the converted channels. All settings are done by the control unit OH 41 (not included in the delivery scope). The LTE 700 / LTE 800 MHz protection is done automatically by the device itself. Moreover, the received terrestrial channels can be relocated to any required frequency, hence the VS 35PRO HP is usable as a channel converter.

Amplifier

WISI VX 26 M 1

Amplifier

The VX26M1is a local feeding in-house amplifier with a frequency range up to 1 GHz. All settings are done with the rotary switch or jumper.

Amplifier

WISI VX 26 H

Amplifier

The VS 50 PRO is a programmable terrestrial filter with an integrated amplifier. Four VHF/UHF antennas can be connected via four F connectors, and one additional F connector is available for insertion of FM. Also, 32 freely selectable channels can be programmed – a number that may be doubled to 64 by extending the channel bandwidth. Moreover, the received terrestrial channels can be relocated to any required frequency, hence the VS 50 PRO is usable as a channel converter, to relocate UHF channels to a lower frequency range. The high selectivity ensures a high signal quality of the converted channels. All settings are done by the control unit OH 41 (not included in the delivery scope).

Amplifier

WISI VX 25

Amplifier

Programmable broadband distribution amplifier for use in coaxial networks, delivery without return path modules. Settings via handset OH41. Second output configurable by splitter module XM.

Amplifier

WISI VS 50 PRO

Amplifier

The VS 50 PRO is a programmable terrestrial filter with an integrated amplifier. Four VHF/UHF antennas can be connected via four F connectors, and one additional F connector is available for insertion of FM. Also, 32 freely selectable channels can be programmed – a number that may be doubled to 64 by extending the channel bandwidth. Moreover, the received terrestrial channels can be relocated to any required frequency, hence the VS 50 PRO is usable as a channel converter, to relocate UHF channels to a lower frequency range. The high selectivity ensures a high signal quality of the converted channels. All settings are done by the control unit OH 41 (not included in the delivery scope).

Amplifier

WISI VS 35 PRO HP

Amplifier

The VS 35 PRO HP is a programmable terrestrial filter with an integrated amplifier. Four antennas (1x FM, 1x DAB/VHF, 2x UHF) can be connected via four F-connectors. 15 freely selectable channels can be programmed a number that may be increased up to 50 by extending the channel band width. The high selectivity ensures a high signal quality of the converted channels. All settings are done by the control unit OH 41 (not included in the delivery scope). The LTE 700 / LTE 800 MHz protection is done automatically by the device itself. Moreover, the received terrestrial channels can be relocated to any required frequency, hence the VS 35PRO HP is usable as a channel converter.

Amplifier

WISI VS 80 A

Amplifier

At a Glance: Technical Data General Data Packaging Data PDF Download Downstream Inputs: 4 pcs. Frequency range input 1: 47…108

Antenna

WISI DB 03 A

Antenna

Universal 2-hole jig box with broadband frequency range from 5 . . . 2400 MHz. Thus, the DB 03 antenna socket can be used in BK applications including return channel as well as in SAT distribution systems. Two IEC connections are available for connecting the terminal devices. The high level of decoupling of the subscriber outputs ensures the correct operation of the connected terminals. The class A shielding dimension is achieved.

Antenna

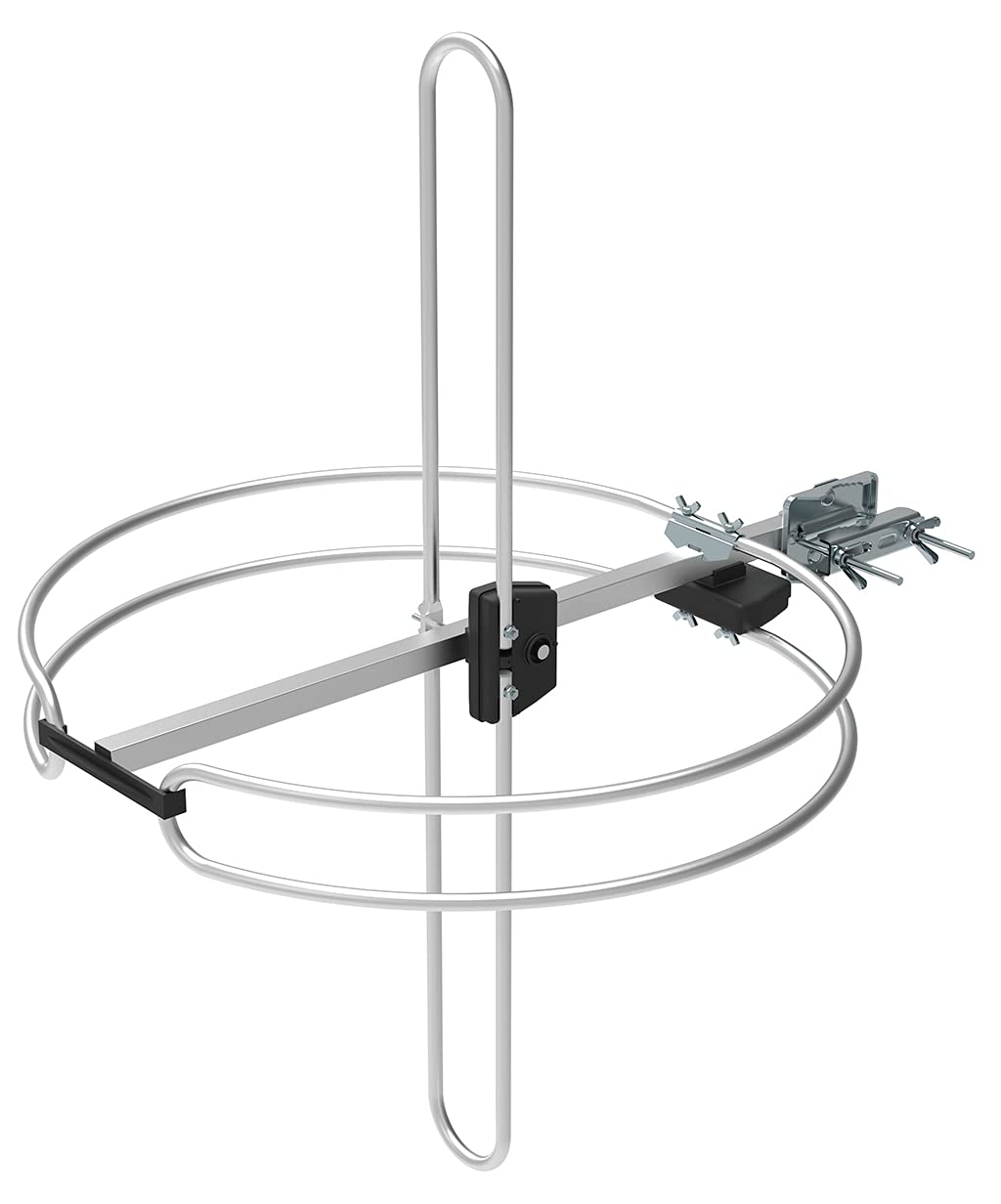

WISI UD 23

Antenna

The UD 23 is a passive antenna combination for the reception of analogue FM signals and the digital radio broadcast DAB/DAB+. It is the ideal replacement for older FM aerials as it allows legacy FM receivers in MDUs to receive excellent signal while adding the frequency band to facilitate operation of digital audio broadcast receivers. The gain of the antenna is 3 dB at band III (DAB/DAB+) and 2 dB at FM. Two separate F-connectors allows the divided insertion of FM and DAB/DAB+ into the existing in-house distribution network.

Antenna

WISI UE 01

Antenna

The UE 01 is a UKW crossed dipoles antenna. The horizontal opening angle is 360 ° and the maximum profit is -3dB.

Antenna

WISI UA 05

Antenna

The UA 05 is a UKW directional antenna. The horizontal opening angle is 70 ° and the maximum profit is 5dB.

Chameleon

Chameleon DM 17 A

Chameleon

A DM 17 A is a passive headend combiner. Because of its compact construction it is possible to install it in a cabinet. The frequency range is 5…1000 MHz and it has a low insertion loss. The input and output impedance amounts to 75 Ohm. A test connection in F-technology is available on the front for easy monitoring.

Chameleon

Chameleon DS 35 0050

Chameleon

The DS 35 0050 is a data connection cable. It is provided with two F-Quick plug. The outer sheath material is made of PVC and the length of the cable is 0.5 m long.

Chameleon

Chameleon GN 55 W 0230

Chameleon

With the optional power supply GN 55 W 0230 for 230 V AC, the reliability of the Chameleon platform will be significantly increased – carrier grade. Thanks to the use of the optimised load sharing of redundant power supply, a permanent and reliable supply of the platform is guaranteed. During the operation, even in case of an error, the PSU can be changed without impairment of the customer signal. Furthermore, the PSU or the complete Chameleon Platform can be integrated in a Performance Management Tool. For the PSU the most important parameters (internal, external output voltage, output current, temperature, type, serial number) can be transferred via SNMP.

Chameleon

Chameleon GN 01W2

Chameleon

The GN 01W2 is a wall mount for up to two Chameleon modules. Ventilation system and power supply unit are integrated in the (module) rack.

Micro Headend

WISI OM20 064S

Micro Headend

The OM 20 064S is a micro headend which generates up to 128 SPTS services from 6 DVB-S/S2/S2X transponders. The SPTS services can be fed directly into an IP network and received by IPTV-capable devices. A M3U table allows the easy handling of a service list. The OM 20 064S is perfectly suited for the IPTV provisioning e.g. in hotels or hall of residences and supports by the integrated 4 CI slots the central decryption of pay-tv content. There is also the possibility to create a multiplex before the CI slots allowing the user to combine services from different transponders but to decrypt them by only one smartcard, hereby guaranteeing the efficient usage of professional CAMs. External video content can be fed in via USB or the LAN connection.

Micro Headend

WISI OM11 0648

Micro Headend

The OM 11 0648 is a micro headend which can transmodulate 6 DVB-T/T2/C channels into 8 DVB-C (QAM) or 8 DVB-T (COFDM) channels. As it comes with 4 CI slots, it is perfectly suited for the central decryption of pay-tv services. There is also the possibility to create a multiplex before the CI slots allowing the user to combine services from different channels but to decrypt them by only one smartcard, hereby guaranteeing the efficient usage of professional CAMs. Additionally the OM 11 supports the deletion of unwanted services from a channel and enables the reduction of output channels by using the output multiplex functionality. As a transport stream, external video content can be fed in via USB or the LAN connection.

Micro Headend

WISI OM 10 0648

Micro Headend

The OM 10 0648 is a micro headend which can transmodulate 6 DVB-S/S2 transponders into 8 DVB-C (QAM) or 8 DVB-T (COFDM) channels. As it comes with 4 CI slots, it is perfectly suited for the central decryption of pay-tv services. There is also the possibility to create a multiplex before the CI slots allowing the user to combine services from different transponders but to decrypt them by only one smartcard, hereby guaranteeing the efficient usage of professional CAMs. Additionally the OM 10 supports the deletion of unwanted services from a transponder and enables the reduction of output channels by using the output multiplex functionality. As a transport stream, external video content can be fed in via USB or the LAN connection.

Micro Headend

WISI OM 10 0646

Micro Headend

The OM 10 0646 is a micro headend which can transmodulate 6 DVB-S/S2 transponders into 6 DVB-T (COFDM) packages. As it comes with 4 CI slots, it is perfectly suited for the central decryption of pay-tv services. There is also the possibility to create a multiplex before the CI slots allowing the user to combine services from different transponders but to decrypt them by only one smartcard, hereby guaranteeing the efficient usage of professional CAMs. Additionally the OM 10 supports the deletion of unwanted services from a transponder and enables the reduction of output channels by using the output multiplex functionality. As a transport stream, external video content can be fed in via USB or the LAN connection.

Micro Headend

WISI OE01

Micro Headend

The OE 01 Encoder Modulator enables HD video & audio encoding and digital modulation into an RF signal, compatible for distribution over coaxial cable. The HDMI video signal is MPEG4 compressed and can be received on TV sets with a built-in MPEG4 compatible receiver. On the output side, all common terrestrial- / cable signal modulations are supported (DVB-C/T; ATSC-T/C; DTMB) and can be selected directly on the device without additional hardware or software.

Multi Switch

WISI OL21 0002

Multi Switch

Quad converter for the conversion of the optical input signal into 4 independent subscriber outputs. Converted will be all inserted signals ((DVB-S/S2, DVB-T/T2, DAB and FM). Power supply by the connected stb.or TV sets with integrated satellite receiver or the optional power supply OLPS 0230.

Multi Switch

WISI OL 14 0000

Multi Switch

Electric/optical converter for distribution of one satellite, DVB-T/T2, DAB and FM into an optical output signal. Power supply and antenna pipe installation kit included.

Multi Switch

WISI DY 70

Multi Switch

The DY 70 is a short circuit-proofed power supply operating at an input voltage of 230 V AC, 50/60 Hz and provides an output voltage of 13 V DC. It is used in combination with multiswitches of the PROSWITCH series, as well as the amplifier DY 40 and surge protector DL 400.

Multi Switch

WISI DY 40

Multi Switch

The DY 40 is a SAT amplifier for 4 polarization planes, perfectly suited for the construction of large multiswitch systems. The gain is 30 dB in the frequency range from 950. . . 2150 MHz. The gain can be reduced by up to 20 dB in 2 dB increments using buttons. A slope setting to compensate for the frequency-related cable attenuation is possible up to 12 dB. Power can be supplied via the trunk lines, or alternatively with the seperate power supply unit DY 70. Mechanically compatible to all PROSWITCH devices and the overvoltage protection DL 400.

Multi Switch

WISI DY 1716

Multi Switch

The DY 1716 is a cascadable multiswitch with 17 inputs for the distribution of four satellites and terrestrial signals. With the separately power supply DY 70 that powers the LNB, the multiswitch is useable as a stand alone device. The polarisations are available at 17 cascade outputs for the installation of further multiswitches. Commercially available DVB-S/S2 set-top-boxes or TVs with an integrated receiver can be used at the 16 subscriber outputs. Inserted terrestrial signals like DVB-T/T2, DAB or FM are available at each subscriber output as well. The stand-by functionality minimizes power consumption by activating the mulitswitch only in case the connected STB is turned on.

Multi Switch

WISI DY 1708

Multi Switch

The DY 1708 is a cascadable multiswitch with 17 inputs for the distribution of four satellites and terrestrial signals. With the separately power supply DY 70 that powers the LNB, the multiswitch is useable as a stand alone device. The polarisations are available at 17 cascade outputs for the installation of further multiswitches. Commercially available DVB-S/S2 set-top-boxes or TVs with an integrated receiver can be used at the 8 subscriber outputs. Inserted terrestrial signals like DVB-T/T2, DAB or FM are available at each subscriber output as well. The stand-by functionality minimizes power consumption by activating the mulitswitch only in case the connected STB is turned on.

Multi Switch

WISI DY 0916

Multi Switch

The DY 0916 is a cascadable multiswitch with nine inputs for the distribution of two satellites and terrestrial signals. With the separately power supply DY 70 that powers the LNB, the multiswitch is useable as a stand alone device. The polarisations are available at nine cascade outputs for the installation of further multiswitches. Commercially available DVB-S/S2 set-topboxes or TVs with an integrated receiver can be used at the 16 subscriber outputs. Inserted terrestrial signals like DVB-T/T2, DAB or FM are available at each subscriber output as well. The standby functionality minimizes power consumption by activating the mulitswitch only in case the connected STB is turned on.

Multi Switch

WISI DY 0908

Multi Switch

The DY 0908 is a cascadable multiswitch with nine inputs for the distribution of two satellites and terrestrial signals. With the optional power supply DY 70 that powers the LNB, the multiswitch is useable as a stand alone device. The polarisations are available at nine cascade outputs for the installation of further multiswitches. Commercially available DVB-S/S2 set-topboxes or TVs with an integrated receiver can be used at the eight subscriber outputs. Inserted terrestrial signals like DVB-T/T2, DAB or FM are available at each subscriber output as well. The stand-by functionality minimizes power consumption by activating the mulitswitch only in case there is a switched on stb connected.

Multi Switch

WISI DY 0516

Multi Switch

The DY 0516 is a cascadable multiswitch with five inputs for the distribution of one satellite and terrestrial signals. With the optional power supply DY 70 that powers the LNB, the multiswitch is useable as a stand alone device. The polarisations are available at five cascade outputs for the installation of further multiswitches. Commercially available DVB-S/S2 set-top-boxes or TVs with an integrated receiver can be used at the 16 subscriber outputs. Inserted terrestrial signals like DVB-T/T2, DAB or FM are available at each subscriber output as well. The stand-by functionality minimizes power consumption by activating the mulitswitch only in case there is a switched on stb connected.

Multi Switch

WISI DY 0508

Multi Switch

The DY 0508 is a cascadable multiswitch with five inputs for the distribution of one satellite and terrestrial signals. With the optional power supply DY 70 that powers the LNB, the multiswitch is useable as a stand alone device. The polarisations are available at five cascade outputs for the installation of further multiswitches. Commercially available DVB-S/S2 set-top-boxes or TVs with an integrated receiver can be used at the eight subscriber outputs. Inserted terrestrial signals like DVB-T/T2, DAB or FM are available at each subscriber output as well. The standby functionality minimizes power consumption by activating the mulitswitch only in case there is a switched on stb connected.

Chameleon

Chameleon GN 20 R

Chameleon

The GN20 base unit is a professional 1 HU 19 inch base unit for up to 2 Chameleon modules. The GN20 R base unit has dual redundant power supplies, and embedded fans. The Chameleon modules in GN20 R are managed via the Chameleon RJ45 management ports, and streaming to/from Chameleons is done via the Chameleon RJ45 streaming ports.

Cable

WISI MK 96 A 0100/0101/0250/0252/0500

Cable

The MK 96 A 0100/0101/0250/0252/0500 is a 75 Ohm coaxial cable for the in-house installation. The high-quality materials and the triple shielding, with a screening efficiency of >120 dB, guarantees an interference free transmission in distribution systems for cable TV, terrestrial and satellite signals. The MK 96 A is approved by Vodafone Kabel Deutschland and perfect for the installation in return path capable multimedia networks. The inner conductor consists of pure copper enabling perfect electrical values and a high reliability. With the fire protection class Dca, s3, d2, a3 the MK 96 A complies with the Construction Products Regulation (CPR) EU No. 305/2011. The PVC outer sheath is installation friendly and compatible with the WISI connector system as well as commercially available connection accessories.

Cable

WISI MK 76 A 0100/0101/0500

Cable

The MK 76 A 0100/0101/0500 is a 75 Ohm coaxial cable for the in-house installation. Due to the small diameter of 5 mm, it is perfectly suited for the laying in ductwork or installations with limited space. The triple shielding with a screening efficiency of >115 dB guarantees an interference free transmission in distribution
systems for cable TV, terrestrial and satellite signals. The inner conductor consists of pure copper enabling perfect electrical values and a high reliability. With the fire protection class Eca the MK 76 A complies with the Construction Products Regulation (CPR) EU No. 305/2011. The PVC outer sheath is installation friendly and compatible with the WISI connector system as well as commercially available connection accessories.

Cable

WISI MK 15 0500

Cable

The MK 15 0500 is a 75 Ohm coaxial cable for the in-house installation in wet rooms or outside installation. The high-quality materials and the triple shielding with a screening efficiency of >125 dB guarantee an interference free transmission in distribution systems for cable TV, terrestrial and satellite signals. The MK 15 is approved by Vodafone Kabel Deutschland and perfect for the installation in return path capable multimedia networks. The inner conductor consists of pure copper enabling perfect electrical values and a high reliability. With the fire protection class Fca, the MK 15 complies with the Construction Products Regulation (CPR) EU No. 305/2011. The specific PE outer sheath protects the cable against humidity. The cable is compatible with the WISI connector system as well as commercially available connection accessories.

Chameleon

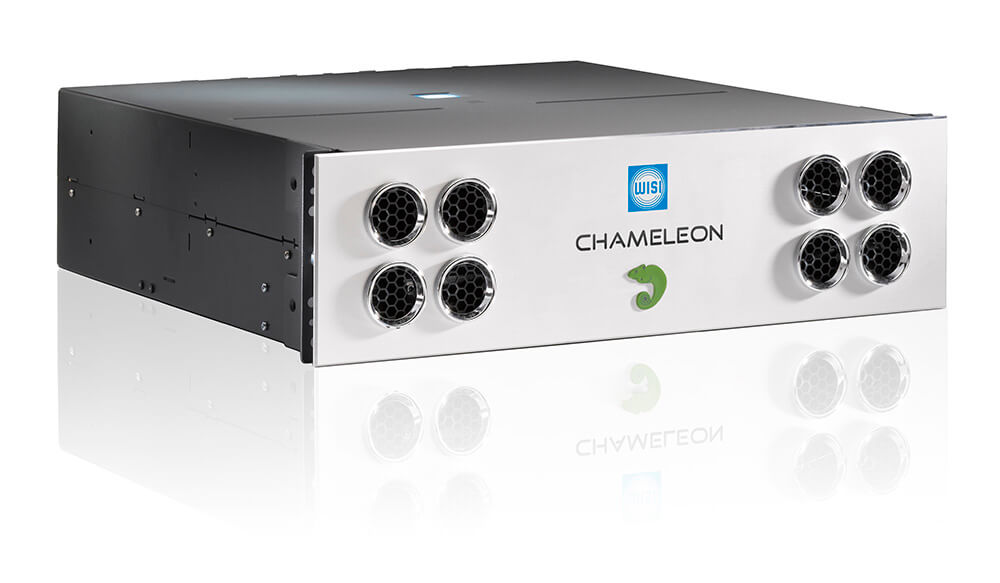

CHAMELEON GN 50 W 0230

Chameleon

The Chameleon GN 50 W 0230 is a 19´´ 3HE basic unit for up to 10 Chameleon modules. The GN 50 W 0230 has an integrated power supply and ventilation system. The Chameleon GN 50 W 0230 can be used alone or in connection with an existing installation to add additional Chameleon modules. A redundant power supply unit and a IP switch can be integrated.

Tangram

TANGRAM GT 21 W

Tangram

The GT 21 W module is part of the Tangram product portfolio. The GT 21 W module allows you to add up to 6 services in PAL / SECAM format per module to your network. Tangram is a very high density and highly flexible solution for all kinds of networks. The WISI Tangram chassis uses a fully redundant concept (n+1, 1+1).

Satellite

WISI OA10A

Satellite

The OA 10 A offset antenna convinces by its easy installation and low weight. The reflector, feed arm and LNB holder consists of light and weather resistant aluminum. The stabile back part is pre-mounted to the reflector and enables an installation in a few steps. For the Installation is an antenna pipe MN 60A or wall holder MN xx available. Multifeed reception can be realized by using the optional multi feed bar OF85 0002 or OF85 0004.

Antenna

WISI EB677LTE

Antenna

The EB 677 LTE is a UHF antenna for the frequency range 470…690 MHz. The integrated LTE filter convinces with a very high rejection of LTE signals and protects the following distribution network from interfering signals such as 4G/5G. An effective and fast installation is realised by the pre-assembled and pluggable mechanics.
